Yunda innovated design of thermal shredding device has a number of patents and consists of three main components: Thermal Shredder, Ribbon Feeder and Side feed Screw.
Raw materials like wood chips are first fed into breaker-bar zone of Thermal Shredder via side feed screw and ribbon feeder, and then enter into a coarse refining zone and followed by fine refining zone where the materials are shredded into uniformed hair-like shreds. Depending on process requirement, chemicals may, or may not, be added into the shredder.
Compared to traditional HC refiners, Yunda’s innovated Thermal Shredder has many advantages:
The clearance between refiner plates can be accurately adjusted through electronic and hydraulic control, up to 0.01mm;
It has shock sensors and vibration sensors to ensure safe and stable operation of the equipment;
Its dynamic balancing comes with G2.5 level accuracy, which ensures smooth operation and less noise;
It uses a patented rubber damping limit device to ensure stability of operation process;
Replacing the refiner plates does not require dismounting the pipeline, and it equipped with a refiner plates holder and specialized tooling. This help shorten the time for replacing the refiner plates, reduce downtime and improve start-up efficiency.
Yunda’s Thermal Shredder has high efficiency, is stable and reliable, and comparable to other world first-class products. It is a key equipment for i-CTMP process technology.
Case
-
The i-CTMP High Yield Pulping Production line of Shan Ying
-
Shandong Tianhe i-BCTMP pulping line upgrade project
-
Guangxi Sun Cultural Paper
-
Qianan Boda Cultural Paper
-
Vietnam Thuận An Paper PM8 Project
-
EG-Paper Packaging
-
400t/d Bamboo Fiber i-CTMP Project
-

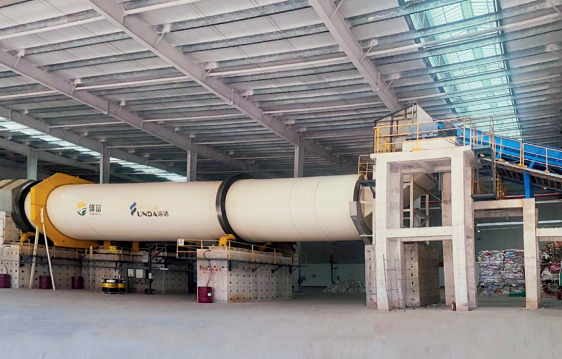

Guangxi Kebao ZDG425 Drum Pulper
-
